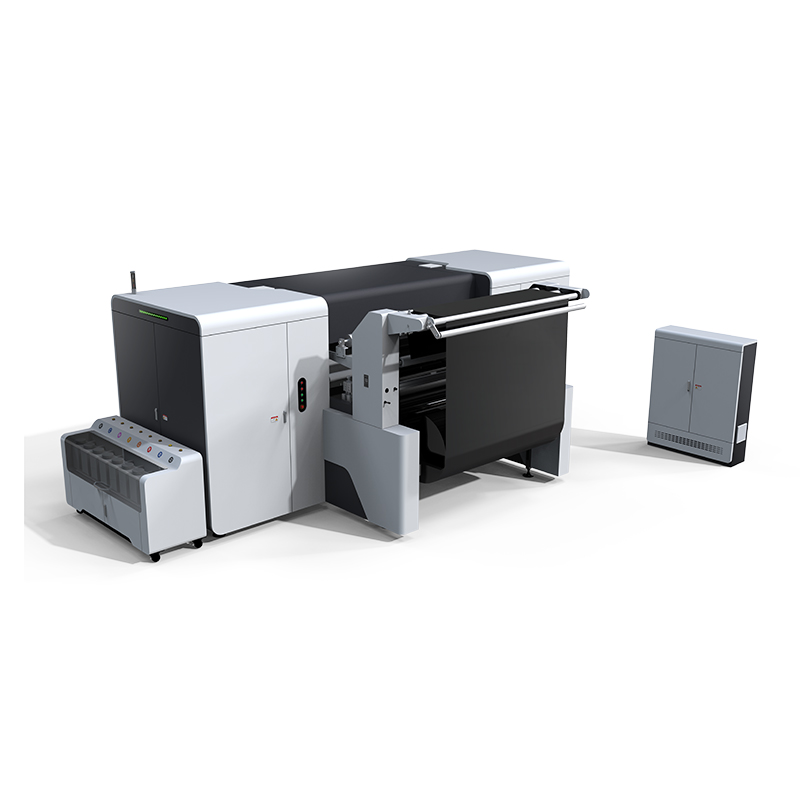

HY-1808 high-speed textile fabric digital printing machine
- 发布日期：2024-01-12
- 访问量：1036 次
- 产品介绍
- 相关产品
Guide belt conveying mode
Automatic drying and winding system, the car automatically rises and falls
Negative pressure ink supply, positive pressure cleaning, automatic moisturizing
Automatic cleaning belt guide system
Anti-roller printing and roller swimming
Drying aluminum foil and infrared heating air; Optional tunnel drying room
Automatic height adjustment, printing height: 1.5-30mm.
Product model HY-1808 Print head
Ricoh GEN5/GEN6 Fabric conveyance mode
Adhesive belt with cleaning and heating system
Effective printing width
1800/2200/2600mm Maximum printing resolution
2400DPI Prints speed Gen6 2pass：170 sqm/h
3pass：120 sqm/h
RIP software
Neostampa / Texprint Printing part introduction
Automatic negative pressure ink supply, automatic car lifting, automatic positive pressure cleaning, automatic moisturizing, and print head anti-collision system.
Main ink tank
10L Belt system introduction
Automatic drying and winding system, automatic cleaning guide belt system, anti pressure roller printing, synchronous pressure roller.
Dryer unit
Single-layer tunnel oven (optional steam configuration) Ink Reactive/Disperse/Acid/Pigment (Max. up to 12 Color)
Print port
Gigabit Ethernet, optical fiber
Print head height
1.5-30mm,automatic height adjustment Power voltage
380V, 3L + N +G(with independent reliable effective earth wire)
Power frequency
50HZ/60HZ±1HZ Power consumption
Print 10KW Workshop condition
The temperature is 20-30 DEG C. Humidity: 50-65%. Effective Width size 1800mm 2200mm (Effective width2180mm) 2600mm printer 4165mm*2200mm*1600mm
L*W*H
4615mm*2200mm*1700mm
L*W*H
5195mm*2200mm*1750mm
L*W*H
Dryer 2055mm*2150mm*1467mm
L*W*H
Ink Cabinet Internally installed Weight printer：2900Kg
printer ：3750Kg printer：4950Kg
